NOW INTRODUCING,

RATE CONTROLLED SPRAY SYSTEM

PinPoint III TURF

Liquid Application System.

This intelligent rate controlled PWM application system, built from the PinPoint III platform, automates spray output using task controlled sections, turn compensation and real-time operator feedback, all through an ISOBUS display.

By maintaining a consistent droplet size and exact application rate regardless of ground speed or terrain, PinPoint III Turf delivers superior coverage, reduces chemical waste, and cuts costs—so operators can work faster, smarter and more accurately.

PinPoint III TURF is task controller based with the ability to receive task control prescription, add edge pass flow adjustment and can be set to GPA or Gallon per 1000 sq ft.

UPGRADE YOUR TURF APPLICATION TO PINPOINT ACCURACY.

Lock onto rate. Drive to the terrain.

PinPoint III TURF allows the flow rate and pressure to be controlled independently by using a electric PWM application solenoid at each tip. The spray pattern is blended pulse sprayed to adjust for flow changes while being locked onto target rate.

Zero turning radius makes for excellent machine control. However, in traditional spray applications rate during turns can greatly vary as the outside boom is traveling at a much faster speed than the inside. This creates an under application on the outside, and over application on the inside. Because PinPoint III TURF is controlling the flow to each nozzle, it compensates the flow during turns for even and repeatable application regardless of obstacles.

ISOBUS interface. Easy to monitor.

No more calculated speed and pressure spraying.

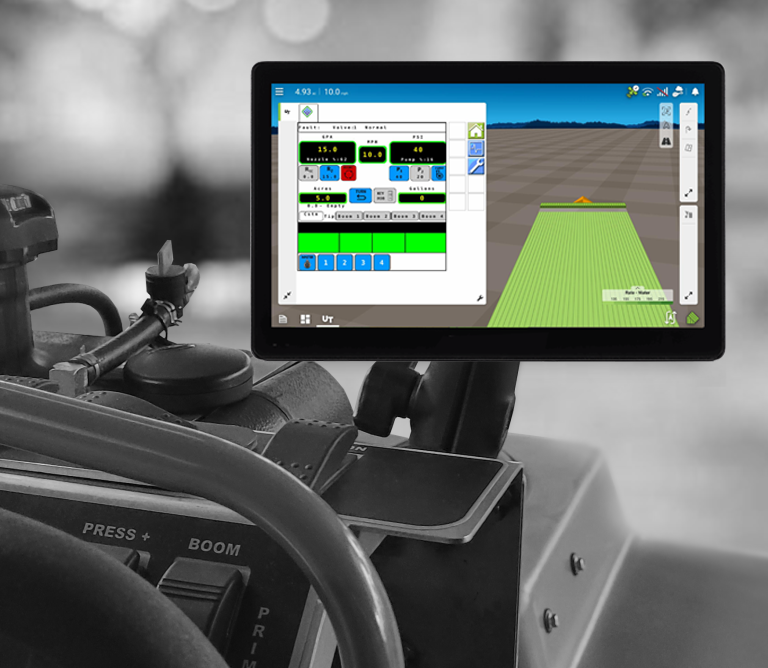

PinPoint III TURF allows you to set desired application parameters via most ISOBUS displays.

Electronically monitor or change application parameters with the click of a button. PinPoint III TURF also has built in system diagnostics for real time operator feed-back.

PinPoint III TURF Features

ISOBUS INTEGRATION - Integrates directly through ISOBUS VT/UT display to provide operator-focused information for the most confident application.

TASK CONTROLLER BASED SECTIONS - Nozzles can be controlled up to the number of task control sections.

TURN COMPENSATION - Compensates for boom speed differences to output an even flow across the entire boom.

PREDICTIVE CONTROL - Adds predictive rate control to lock onto target; even under the most challenging field conditions.

PRESSURE INDEPENDENT OF RATE AND SPEED - Flow rate and pressure are controlled independently allowing for consistent droplet size over large speed ranges.

NOZZLE DIAGNOSTICS - Nozzle diagnostics and system feedback with alarms.
